High connection quality and strong structural stability: the interlocking joints formed after riveting have high tensile strength and shear strength. The joint has even stress distribution and is not easy to loosen or fall off. Compared with traditional riveting, it has better vibration resistance and fatigue resistance.
The cold extrusion process will not damage surface coatings (such as galvanized sheets or color-coated sheets) or paint layers. It avoids material deformation and oxidation caused by high-temperature welding, thereby ensuring the beauty and corrosion resistance of the workpiece, which is crucial for products that require sealing and rust prevention, such as air doors and household appliances.
Easy to operate and have a wide range of applications: The equipment has a compact structure and is equipped with a suspended platform for easy operation. Designed specifically for high-volume production, the pneumatic drive system breaks through the limitations of battery life and ensures long-term stable operation. Its small and lightweight size allows it to be operated handheld without site restrictions, making it suitable for large-scale production lines, on-site maintenance or high-altitude operations (such as post-installation riveting of large pneumatic dampers).
Compatible with a variety of metal materials (cold-rolled steel, galvanized steel, stainless steel, aluminum, etc.) and plate thicknesses (0.8-3.0 mm). The tool can be adapted to different riveting specifications by simply changing the mold, making it ideal for damper stiffeners, sheet metal splicing, electrical enclosures and many other applications.

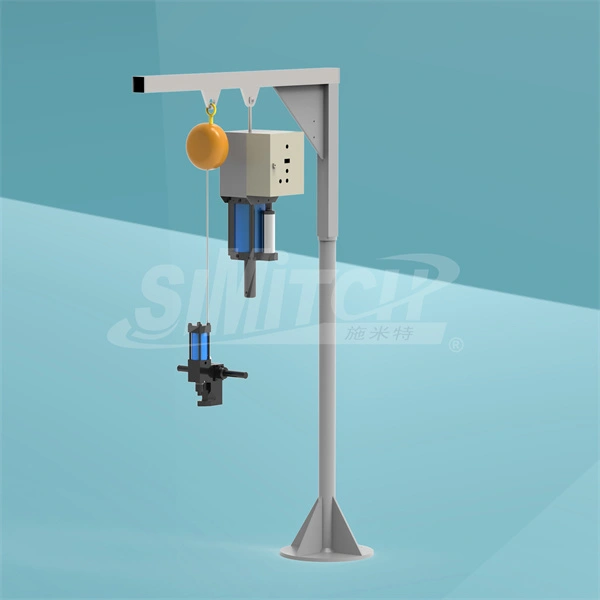

■Features: Hand-held and portable
■Drive method: pneumatic hydraulic cylinder
■ Main parts:
1. Split pneumatic hydraulic cylinder
2. Clamping body
3. Supercharger
4. Cantilever
5. Swing
Part number | Maximum capacity | A | D | H | ||
KN | T | |||||
CRH03 | 45 | 45 | 4.5 | 28.5 | 40 | 27 |
CRH03 | 45 | 45 | 4.5 | 35 | 60 | 27 |
CRH03 | 75 | 75 | 7.5 | 118 | 110 | 45 |
CRH03 | 75 | 75 | 7.5 | 118 | 160 | 45 |
Please tell us your materials, thickness and application. Our engineers will provide professional joining advice and technical support according to your specific production requirements.
