Gas-liquid booster cylinder

The gas-hydraulic drive system is a fully integrated drive system. Its modular configuration and dedicated accessories ensure it can be seamlessly adapted to various application scenarios. Customized engineering, such as configurations optimized for welding, enable these cylinders to deliver high precision and reliability to meet the diverse needs of customers.

Cylinder Structure and Features

High-precision guide bushings and positioning guides
Dual-supported high-strength steel working piston rod
Sealing elements with patented sealing grooves for long-term lubrication retention and extended service life
End-of-stroke cushion pads to reduce rebound noise
Dual-plunger cylinder sealing system that completely separates air and oil with venting function
Integrated internal air circuit design
Bypass release with integrated overflow buffer
Oil tank vent

Standardized pneumatic interfaces
Force stroke speed regulating valve (Type X)
Integrated test interface
Integrated pneumatic circuit
Pressurized sealed oil reservoir
Double-ended support springs (or gas springs)
Booster piston cushion pad
Integrated pneumatic-hydraulic booster control valve

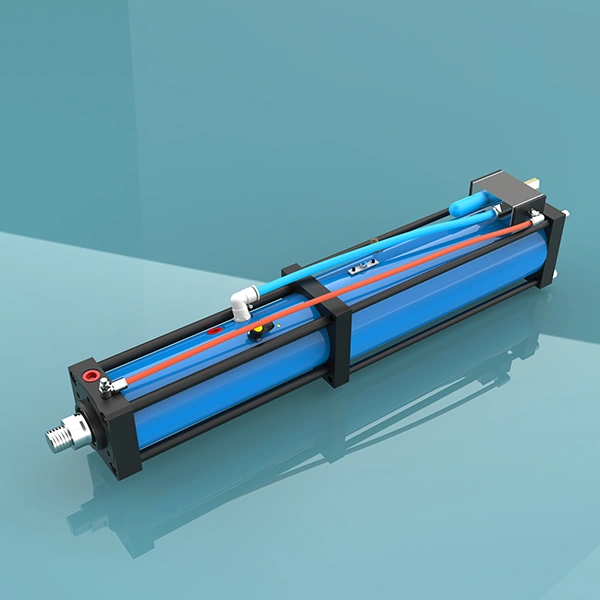

BS series pneumatic hydraulic cylinder

Learn More Consult Now

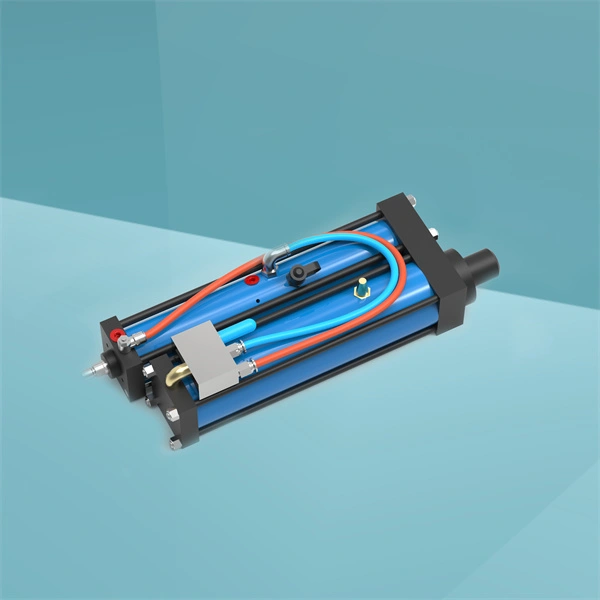

BT series pneumatic hydraulic cylinder

Learn More Consult Now

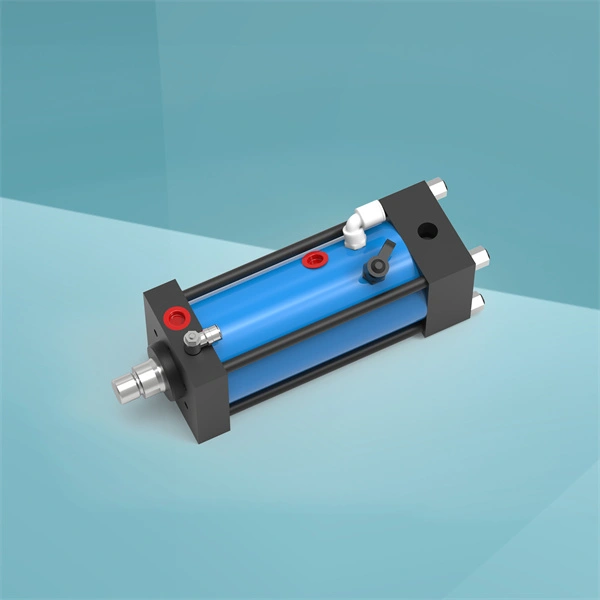

AT series split -type working cylinder

Learn More Consult Now

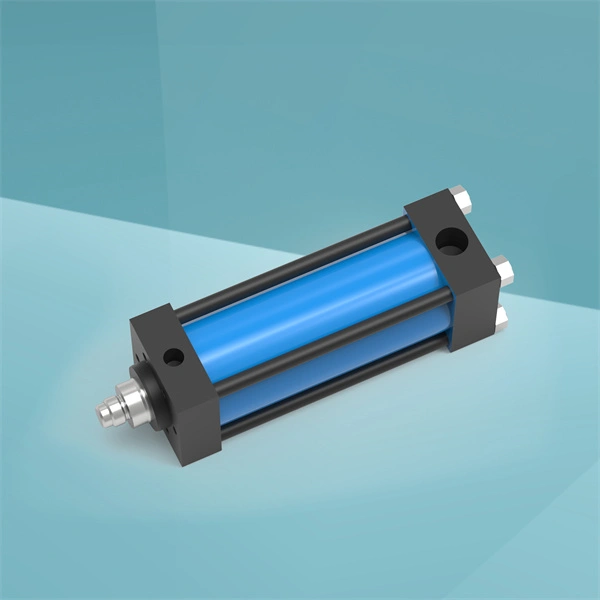

HZ series split working cylinder

Learn More Consult Now

MPS-HMPS series driven supercharger

Learn More Consult Now

Advantages of Pneumatic-Hydraulic Drive

Initial State: Supports 360° installation at any angle.
Fast Approach Stroke: Driven by the approach cylinder to bring the tool into contact with the workpiece.
Power Stroke: Driven by the rear booster to complete pressing or forming operations.
Fast Return Stroke: Pneumatic retraction of the feed cylinder, spring-assisted reset of the booster.
